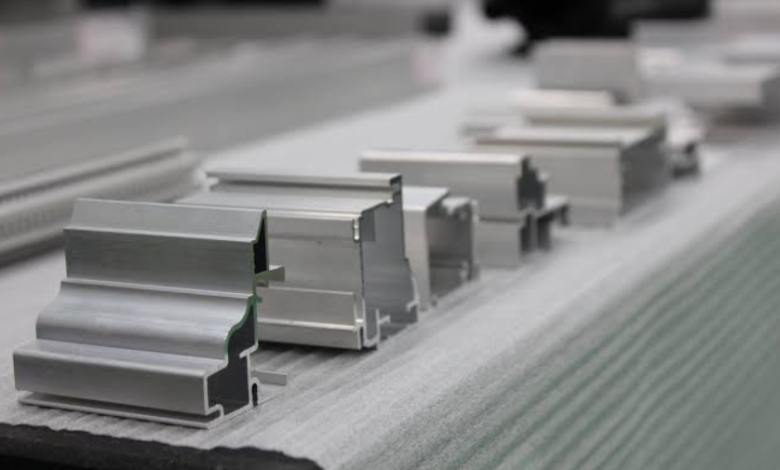

Precision Aluminum Extrusion Profile Design: Controlling Die Risk, Tolerances, and Secondary Machining

Effective precision aluminum extrusion profile design is not achieved by applying tight tolerances to an otherwise ordinary cross-section. The profile must satisfy its structural and assembly functions while allowing balanced metal flow, adequate die strength, controlled cooling, practical straightening, and reliable inspection. Features that appear simple in CAD can behave differently when heated aluminum passes through a die and the emerging length begins to cool. Wall distribution may encourage twist, a narrow slot may weaken the tooling, and an undersized machining allowance may leave critical surfaces unfinished. For that reason, engineers should evaluate the profile as one manufacturing system. Decisions about geometry, tolerances, CNC machining, surface treatment, and production volume should be made before tooling is released—not corrected independently after the first samples arrive.

How Aluminum Extrusion Profile Size and Weight Influence Press Selection

The first review should establish the profile’s overall scale. The circumscribing circle—the smallest circle enclosing the cross-section—together with area and weight per unit length helps determine a suitable press and die arrangement.

Large profiles are not difficult only because they contain more aluminum. A large lightweight section may have unsupported walls that are difficult to fill and straighten, while a compact heavy section increases billet use and press load. The relationship between perimeter and metal area can be more informative than width or weight alone.

Profile characteristic	Likely manufacturing influence
Large circumscribing circle	Larger die and suitable press capacity required
Large size with low unit weight	Long thin walls may be difficult to support
High weight per unit length	Greater billet demand and extrusion load
High perimeter relative to section area	More demanding filling and dimensional control
Strongly asymmetric section	Greater risk of uneven flow and distortion

The supplier should confirm press compatibility during quotation. Weight reduction has little value if it requires slower production or extensive correction.

See also: Tech-driven security and insurance: the new frontier

Why Balanced Wall Thickness Improves Aluminum Extrusion Stability

The feasibility of an aluminum extrusion wall thickness depends on more than its nominal value. Alloy, overall profile size, wall length, neighboring features, required finish, and available press conditions all matter. A short wall can remain stable at a thickness that may be unsuitable for a wide unsupported panel.

Large changes between thick and thin regions create unequal resistance as aluminum passes through the die. A heavy mounting boss may move differently from an adjacent enclosure wall, pulling the section away from its intended geometry. The consequences can include twist, local waviness, dimensional variation, surface streaking, or reduced production speed.

Good aluminum extrusion design therefore aims for reasonably balanced material distribution. Where function permits, engineers can:

• Use gradual transitions between heavy and light regions.
• Reposition ribs to support broad surfaces.
• Avoid concentrating several heavy features on one side.
• Review unsupported wall length as well as nominal thickness.
• Add machining stock locally instead of thickening an entire wall.

Uniformity is a useful objective, not an absolute rule; material distribution must support function and predictable flow.

How Solid, Hollow, and Semi-Hollow Profiles Change Extrusion Die Design

Profile classification directly influences extrusion die design. A solid aluminum extrusion contains no completely enclosed cavity and can often be produced with a relatively direct die plate. However, deep channels, narrow fins, and asymmetric projections can still place demanding loads on the tooling.

A hollow aluminum extrusion requires an internal mandrel supported by bridges. Aluminum separates around those supports, enters a weld chamber, and rejoins before leaving the die. The design must maintain the mandrel position, control the cavity dimensions, and produce acceptable longitudinal weld regions.

A semi-hollow aluminum profile partially encloses a void. Although it does not contain a fully closed cavity, its opening may leave a long, narrow projection in the die. Depending on the geometry, this can be less robust than a more obvious hollow solution.

These categories affect tooling, maintenance, production rate, and trials. Confirm the classification before quotation because it can alter tooling and recurring costs.

Deep Slots, Sharp Corners, and Tongue Ratio in Aluminum Extrusion Design

Deep slots deserve separate attention because they form tongues in the die. As the slot becomes deeper relative to its opening, the corresponding steel projection becomes longer and less supported. Pressure and heat can cause deflection, accelerated wear, or breakage, affecting both die life and the dimensions of the extruded slot.

The aluminum extrusion tongue ratio is one way extrusion engineers assess this relationship, but it should not be treated as a universal pass-or-fail number. Die material, profile size, alloy, surrounding geometry, and the extruder’s tooling practices also influence feasibility.

Several revisions can reduce risk without changing the product’s basic purpose:

• Increase the opening of a deep slot.
• Reduce unnecessary slot depth.
• Add a suitable radius at its base.
• Replace a knife edge with a blunt or rounded detail.
• Produce a short local feature by CNC machining instead of extending it through the full profile.

Radii aid metal flow and reduce localized die stress. If a sharp corner does not control sealing, location, clearance, or appearance, reconsider it.

Aluminum Extrusion Tolerances Must Reflect the Final Assembly

Useful aluminum extrusion tolerances describe the relationships required for the finished component to work. Besides cross-sectional metal and space dimensions, the drawing may need to address wall thickness, straightness, twist, flatness, angularity, and cut length.

The importance of each control depends on the application. A narrow local width may have little functional effect, while aluminum extrusion straightness determines whether a long rail can enter an assembly. Similarly, aluminum extrusion twist tolerance may control the alignment of mounting faces located far apart. Flatness requirements should identify the relevant surface width and whether the profile will be inspected freely supported or held in a defined condition.

Engineers should classify drawing dimensions as functional, machining-related, or reference. This prevents noncritical measurements from receiving the same costly control as sealing faces, locating channels, and load-bearing interfaces.

A precision extrusion profile manufacturing case shows why profile geometry, tolerances, machining, and verification must be reviewed together. Reliable precision extrusion profiles are defined by repeatable assembly performance, not by placing unusually small tolerances on every dimension.

Planning Machining Allowance for Precision Extrusion Profiles

Extrusion is most efficient when it creates continuous geometry. Ribs, channels, internal passages, guide rails, and structural walls that extend along the complete length are generally appropriate features for the die. CNC machining is better suited to local details such as holes, threads, datum faces, pockets, and tightly positioned mounting features.

The transition between the two processes requires a defined aluminum extrusion machining allowance. Too little stock may prevent a critical face from cleaning up after normal bow, twist, or cross-sectional variation. Too much stock increases cutting time, tool load, heat, and the possibility of releasing residual stress.

When CNC machining aluminum extrusion, the process engineer should identify:

• Which raw surfaces can locate the first operation consistently.
• Which machined surfaces become later-operation datums.
• How bow and twist affect fixture loading.
• Where local support is needed for thin walls.
• Whether coating dimensions apply before or after finishing.

The objective is a stable extrusion carrying sufficient local stock—not a near-finished profile that leaves no room for variation, and not an oversized blank requiring excessive material removal.

What the First Extrusion Trial Should Confirm Before Die Correction

The first extrusion trial validates the assumptions made during drawing and tooling review. It should examine the complete profile and multiple positions along its length rather than relying on one acceptable cross-section.

The trial should confirm:

• Complete filling of thin walls and remote details.
• Balanced flow between heavy and light regions.
• Stability of hollow cavities and narrow openings.
• Bow and twist after cooling, stretching, and straightening.
• Dimensional relationships important to assembly.
• Adequate machining stock at critical surfaces.
• Mill-finish quality on designated visible faces.

If correction is required, the team should first identify whether the deviation originates in profile geometry, die bearing conditions, cooling, stretching, or handling. Correcting one region can influence another, so connected dimensions and surface quality must be rechecked after every adjustment. A correction is successful only when it improves the functional section without creating a new production problem elsewhere.

Converting the Aluminum Extrusion Drawing into a Complete RFQ

A 3D model alone does not provide enough information for a reliable custom aluminum extrusion quotation. It shows nominal geometry but may not define material condition, critical tolerances, cosmetic expectations, downstream work, or realistic production quantities.

A complete RFQ should include:

• Controlled 2D drawing and editable 3D model.
• Alloy and temper requirements.
• Cut length and end-condition requirements.
• Critical assembly and machining dimensions.
• Visible surfaces and allowable cosmetic variation.
• CNC machining, deburring, and cleaning operations.
• Surface finish, color, coating thickness, and masking.
• Prototype quantity, batch size, and annual demand.
• First-article and production inspection documents.
• Packaging requirements for machined and finished surfaces.

These details allow custom aluminum extrusion manufacturing capabilities to be evaluated against the actual project rather than a generic profile. They also help buyers compare quotations based on equal scope, separating tooling, raw extrusion, secondary machining, finishing, inspection, and packaging where appropriate.

Approving a Precision Aluminum Extrusion Profile for Production

Production approval should follow evidence that the cross-section, tooling, and downstream operations work together. The profile’s function must be clear; wall distribution and die risks must have been reviewed; tolerances must reflect actual assembly needs; and trial measurements must cover both the section and its length. Machining allowance, surface-treatment requirements, and inspection methods should also be agreed before recurring orders begin.

This approach does not eliminate every trial adjustment. It ensures that corrections are based on understood manufacturing causes rather than incomplete design information. When the engineer, buyer, toolmaker, extruder, machinist, and quality team work from the same requirements, precision aluminum extrusion profile design becomes a controlled path from CAD to production. The result is a profile that can be extruded consistently, machined from stable references, finished without compromising key interfaces, and verified according to the way the final component will actually be used.
